What is a 220V four-wire magnetic track light?

Magnetic track lighting has become the preferred solution for modern interior design, providing tool-free lamp adjustment, clean minimalist aesthetics and flexible lighting layout for homes, retail stores, hotels and apartments.In this guide, we will provide a detailed introduction to what a 4-wire magnetic orbit system is, how it differs from the traditional 2-wire system, the dimming and intelligent control protocols it supports, and where it offers the greatest value.

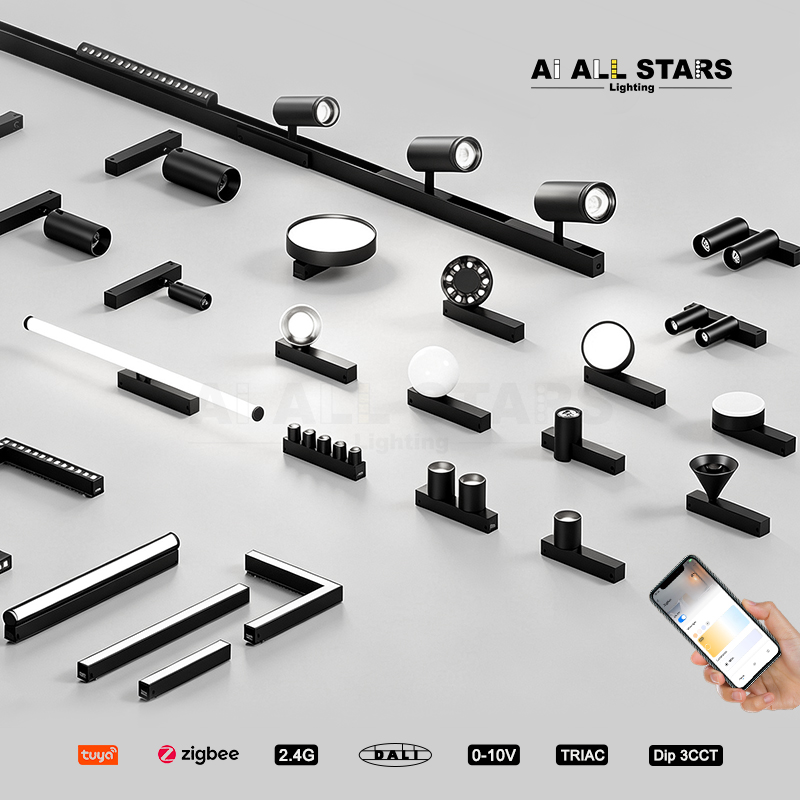

What is a 220V four-wire magnetic track light?

The 220V four-wire magnetic rail light is a magnetic rail lighting system that operates under the standard 220V power supply voltage. Inside the magnetic attraction lamp, there are four internal copper conductor sheets.Unlike the basic 2-wire system that only carries live and neutral power sources, the 4-wire design includes two additional conductors that can be used as:

• 1. Grounding wire - Provides electrical safety grounding for the metal track housing and lamp cap
• 2. Signal line - Transmits control signals for advanced dimming and color grading protocols

This dual-purpose design makes the 4-wire magnetic circuit more versatile than the 2-wire magnetic circuit.

The difference between traditional magnetic track light and 4-wire magnetic track light

Quantity of copper bars

The fundamental difference between the two systems lies in the number of copper sheets inside:

• Traditional magnetic track light: It only contains two conductors - the AC neutral line and the wire. It transmits basic power on/off or single-channel dimming.
• 4-wire magnetic track light: It contains four conductors - live, neutral, and two additional wires as ground or signal wires, depending on the lighting fixture solution.

Supported Lamp Types and Functions

The main advantages of 220V 25M four-wire magnetic track lighting

Complete electrical safety and dedicated grounding

The traditional two-wire magnetic track system has no grounding connection. This poses potential electrical safety risks to the metal track housing and metal lamp caps. The 4-wire design integrates dedicated grounding copper sheets, providing comprehensive grounding protection and meeting EU and international electrical safety standards - the basic requirements for hotels, retail and public projects.

Rich advanced intelligent lighting control options

This is where the 4-wire magnetic circuit truly outperforms the standard system. In addition to all control modes supported by the 2-wire system (2.4G wireless, Tuya Zigbee, Triac dimming, Dip 3CCT), the 4-wire system also supports:

• 0-10V dimming: Precise analog dimming control with simultaneous color temperature adjustment, ideal for commercial and hospitality environments
• DALI dimming: Digital Addressable Lighting Interface, enabling individual fixture addressing, scene setting, and sophisticated lighting management for large projects

Where can 4-wire magnetic track lighting be used

Hotel project

The hotel requires guests to be comfortable and strictly comply with electrical safety regulations. The grounding protection and DALI/0-10V dimming support of the 4-wire system make it an ideal choice for hotel lobbies, corridors, guest rooms and functional Spaces, allowing for scene Settings while maintaining complete safety compliance.

Retail stores and showrooms

The retail environment requires flexible and high-quality lighting to adapt to the constantly changing display of goods. When the display changes, the magnetic track lamp can be repositioned immediately.

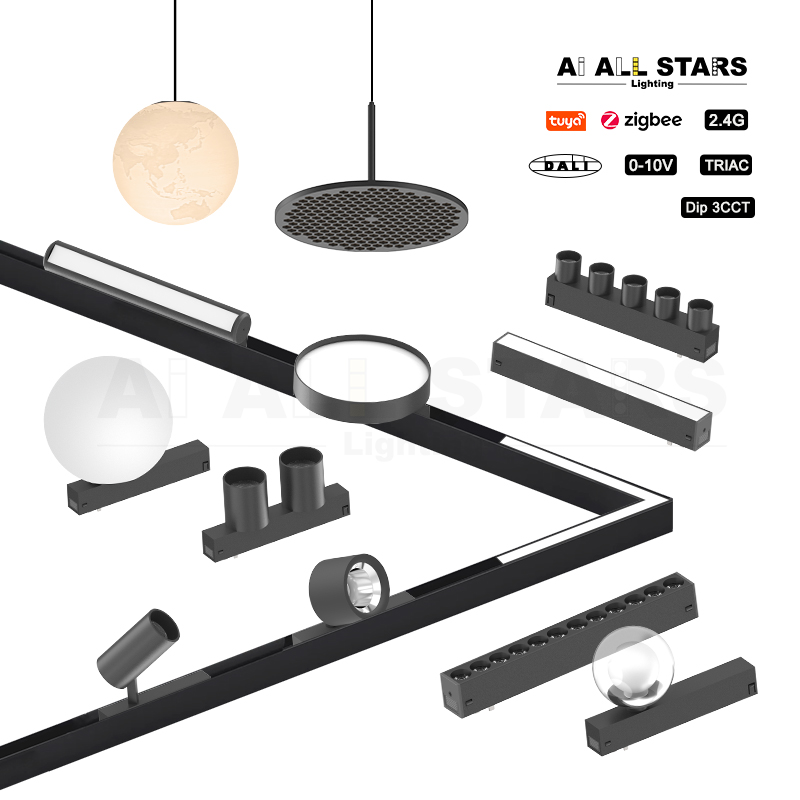

Luxury residences and villas

For high-end families, the 4-line system offers security and smart home integration. Tuya Zigbee and 2.4G control support voice assistant and application control, while the grounding wire provides peace of mind for metal fixtures in the living area, kitchen and bedroom.

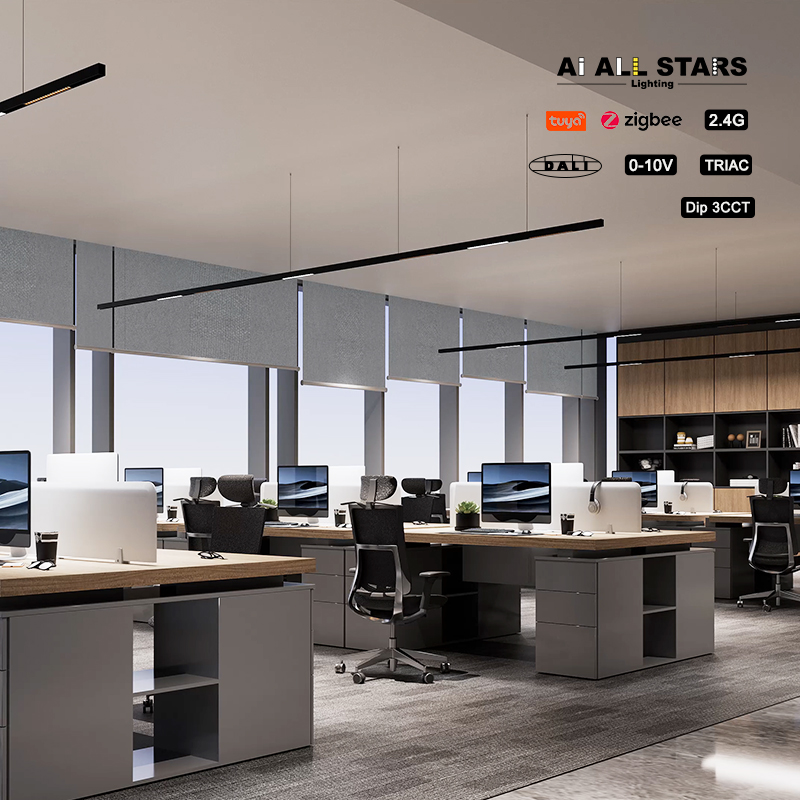

Office and commercial Spaces

Open-plan offices require large areas of uniform and comfortable lighting. Magnetic tracks cover open floors without interruption, and DALI control can achieve individual area dimming.

Conclusion

The 220V 25M 4-wire magnetic track light represents the most powerful and forward-looking magnetic track light solution today. By adding two extra copper conductors - as the ground wire and signal wire - it provides electrical safety compliance, advanced 0-10V and DALI dimming, and color adjustment at the same time.

Although the standard 2-line system is still suitable for simple residential projects, the 4-line system is a clear choice for hotels, retail stores, luxury residences, apartments and commercial Spaces, where the security, scalability and professional lighting control of these Spaces are beyond doubt.
